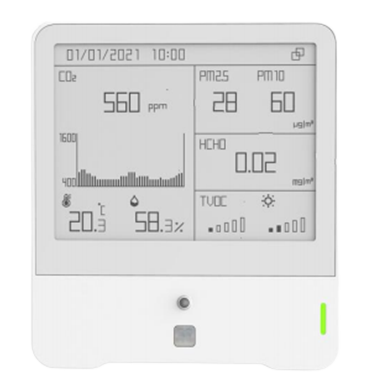

9 in 1 Enviornment Sensor

https://www.darkblueme.com/web/image/product.template/902/image_1920?unique=12b67e2

1,399.00 AED 1399.0 AED 1,399.00 AED

1,399.00 AED

Not Available For Sale

(1,399.00 AED / Units)
  • Delivery

This combination does not exist.

LoRa Indoor Environment PM10 PM2.5 Temperature Humidity CO2 PIR Air Pressure O3 Light TOVC

Terms and Conditions
Shipping: 45 Business Days


Wireless Transmission
TechnologyLoRaWAN®
FrequencyCN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity-137dBm @300bps
Work ModeOTAA/ABP Class C
Sensors
Temperature
Range-40°C - 85°C
Accuracy± 1°C
Resolution0.1°C
Humidity
Range0% - 100% RH
Accuracy± 3%
Resolution0.5% RH
PIR
Detection Area80 ° Horizontal, 55 ° Vertical
Detection Range5 m
StatusVacant/Occupied
Light
Range0-60000 Lux (Determine as 6 levels, 0-5)
TVOC
Range0-500 (IAQ Index)
Accuracy±15 %
Barometric Pressure
Range300 - 1100 hPa (-40°C - 85°C)
Accuracy±0.6 hPa
Resolution0.1 hPa
Carbon Dioxide (CO2)
Range400 - 2000 ppm
Accuracy± (50 ppm + 5 % of reading)
Resolution1 ppm
PM2.5 & PM10
Range0 - 1000 μg/m3
Accuracy0-100(±10μg/m3), 100-1000(±10 %)
Resolution1 μg/m3
Formaldehyde (HCHO)
Range0 - 6 mg/m3
Accuracy±10 %
Resolution0.01 mg/m3
Ozone (O3)
Range0 - 10 ppm
Accuracy±5 % FS
Resolution0.01 ppm
Display & Configuration
Display4.2-inch Black & White E-Ink Screen
Button1 × Power Button + 1 × Reset Button
LED & Buzzer1 × Traffic Light Status Indicator + 1 × Buzzer
Configuration1. Mobile App via NFC
2. PC software via NFC or USB Type-C port
Physical Characteristics
Power Supply5V/1A by Type-C Port
Battery Life
Operating Temperature-20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity10% - 90% (non-condensing)
Ingress ProtectionIP30
Dimension100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
